Welcome to the firist video installation how-to from lovehorsepower.com!!
Kirkosaurus Motor Mount Installation Video – Full Resolution – 52MB windows media format. Right click and save as to view.
Some pictures from the video, are presented here, but please see the video instead for the how to.
Here is the front motor mount on the MR2 Turbo. Remove the 17mm through bolt, and the four 14mm bolts.

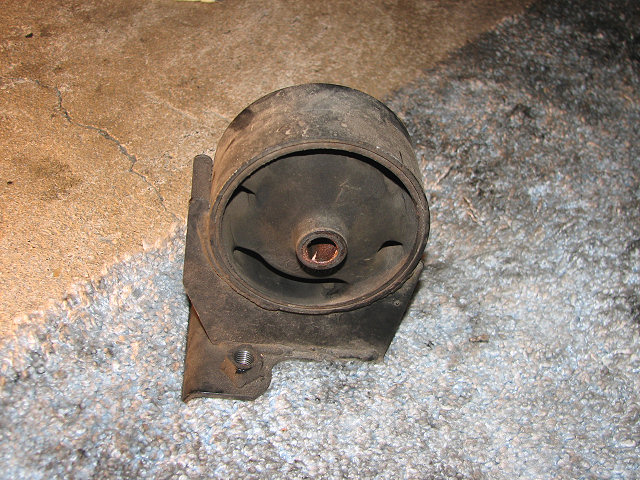

The front motor mount removed:
Motor Mount inserts installed.
Front motor mount with new inserts installed.
Rear motor mount.

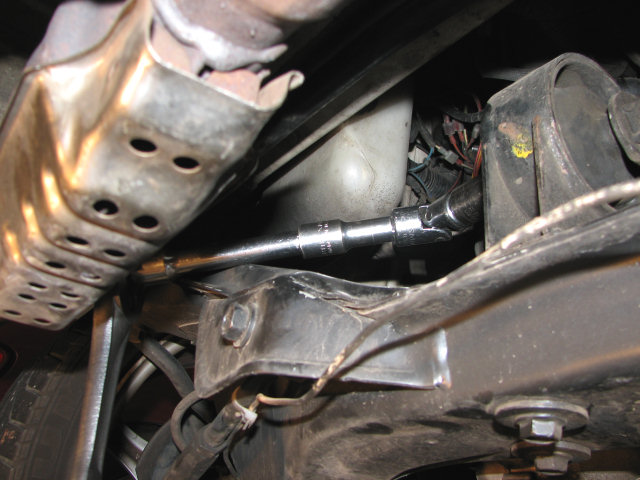

Needed to use a universal joint and a couple of extensions to remove the 17mm through bolt as the stock exhaust was in the way.
Three lower 14mm bolts hold the rear motor mount in place.
Rear motor mount removed.
Inserts installed into the rear motor mount.
Rear motor mount with inserts now installed.
Kirkosaurus Motor Mount Installation Video – Full Resolution – 52MB windows media format. Right click and save as to view.
Joe under the influence of BOOST!
This documentation in no way replaces the Toyota MR2 Repair Manuals. The purpose of this content is only to provide supplementary information to fellow MR2 enthusiasts. Midship Runabout and its contributing authors will not be held responsible for any injury or damages that may occur as the result of practicing any of the methods or procedures described within this website. Article and photo submissions are property of the contributing author.
